Product details

Specifications:
- Lock body: ABS.
- Key: brass.
- Disc: brass.
- Lock cylinder: zinc alloy.
- Key Code: 10,000.
- Weight: 195g/pcs.
- Size for requested coin: diameter is 18.5-30mm, thickness is 1.3-3mm.

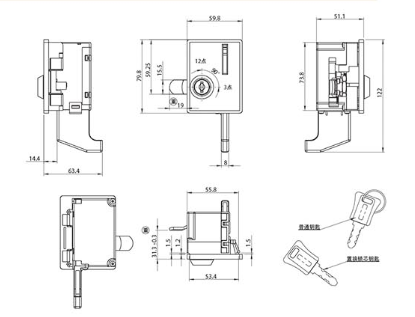

Size Diagram:


Features:
1. Master Key: control.



2. Application:



Packing:
Qty: 40 pcs/ctn.
G.W.: 7.6 KGS.
N.W.: 6.6 KGS.
Carton size: 34.5*29*17.5 cm.

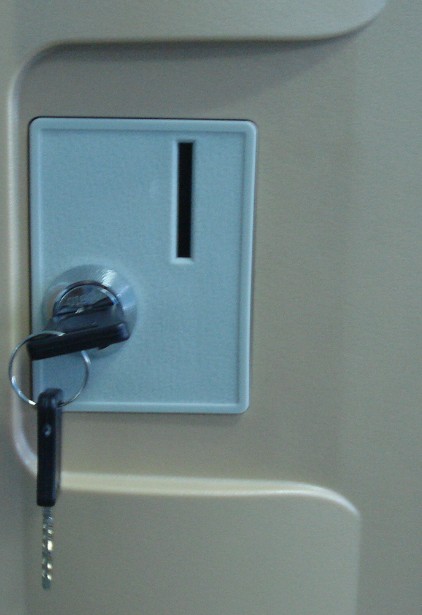

A convenient and popular system for shared-use lockers, this lock releases the key when a coin is inserted into a secure capture mechanism. On completion of use the key is retained and the coin is  returned to user.
